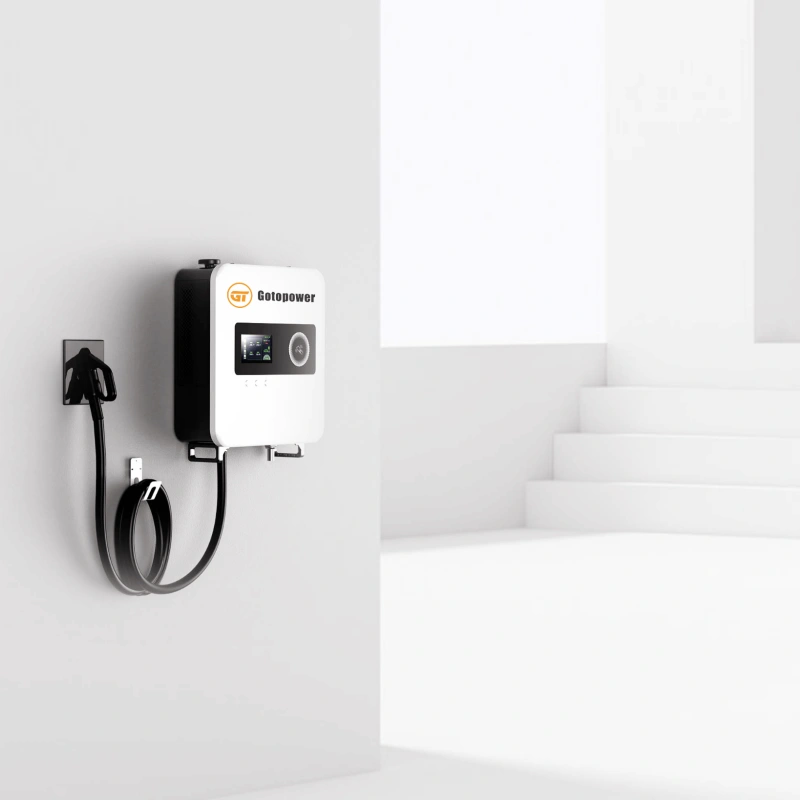

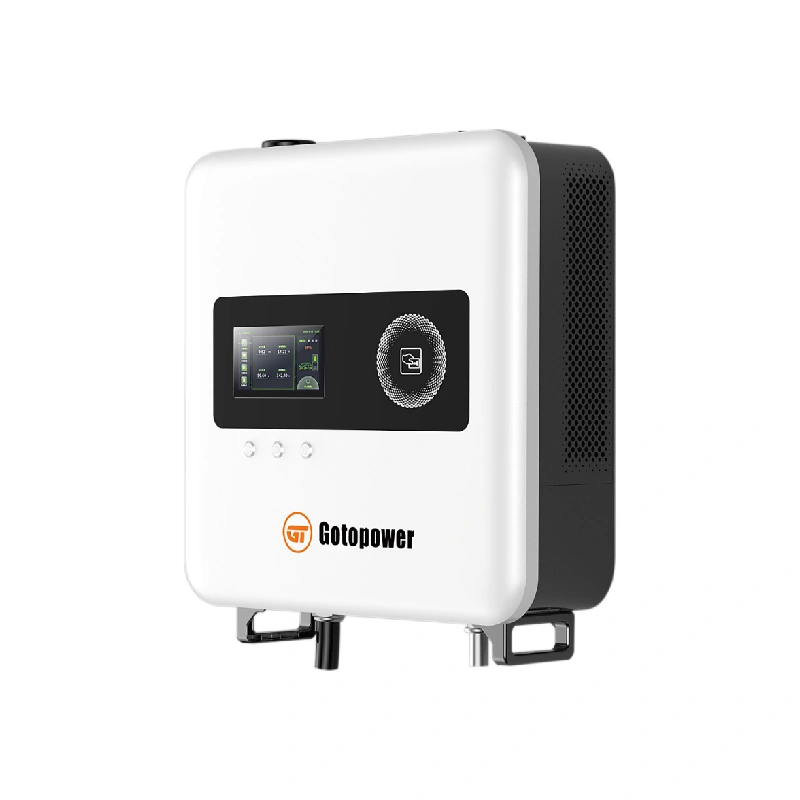

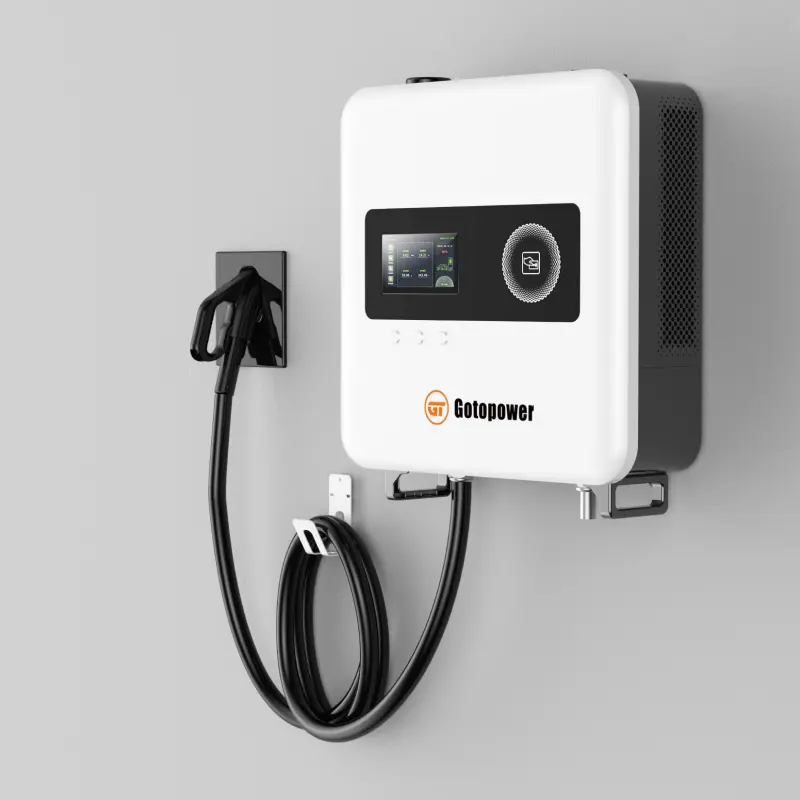

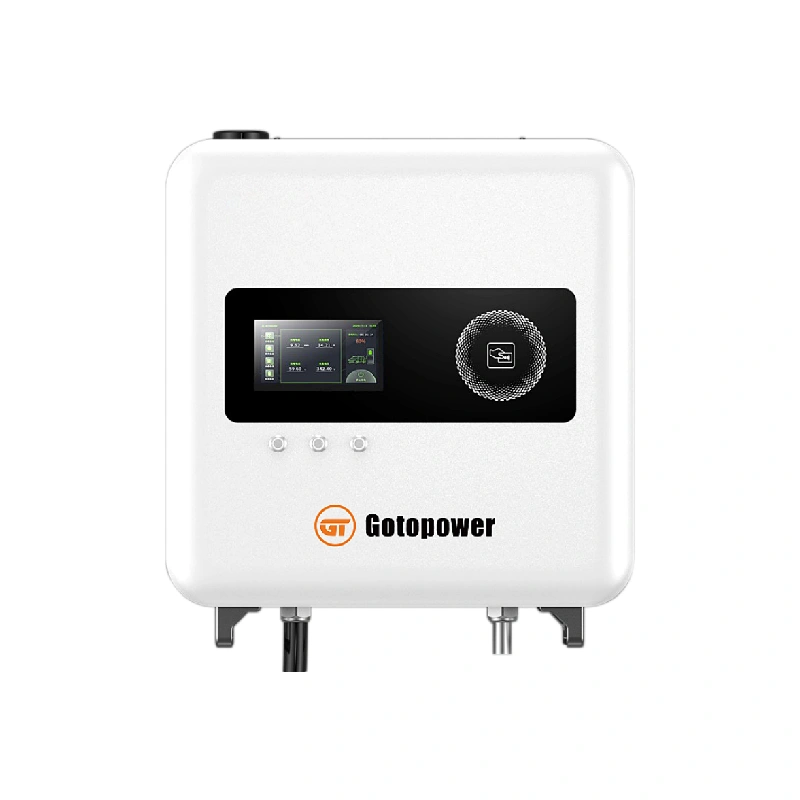

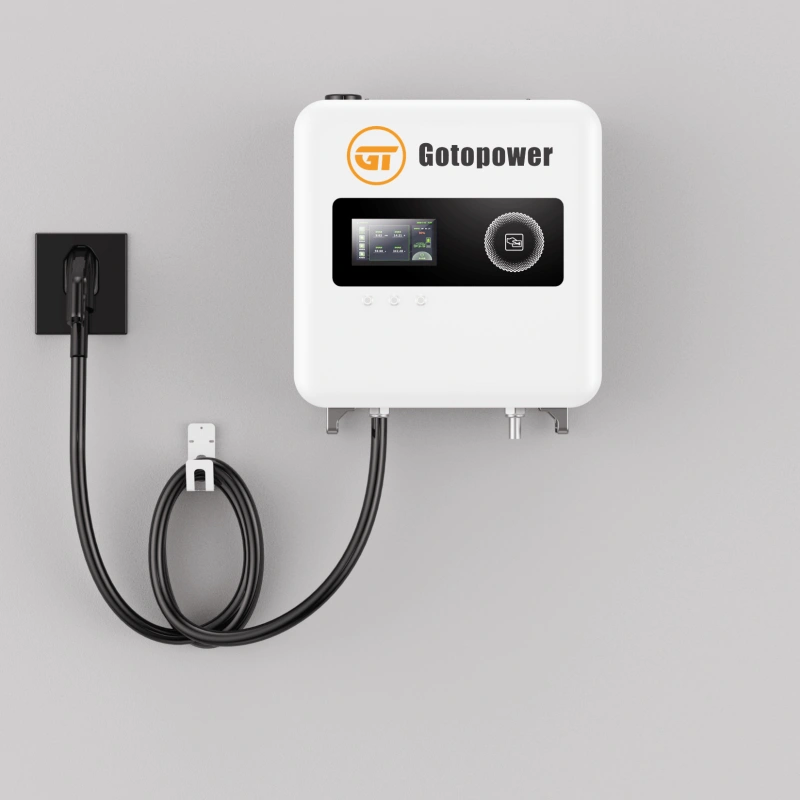

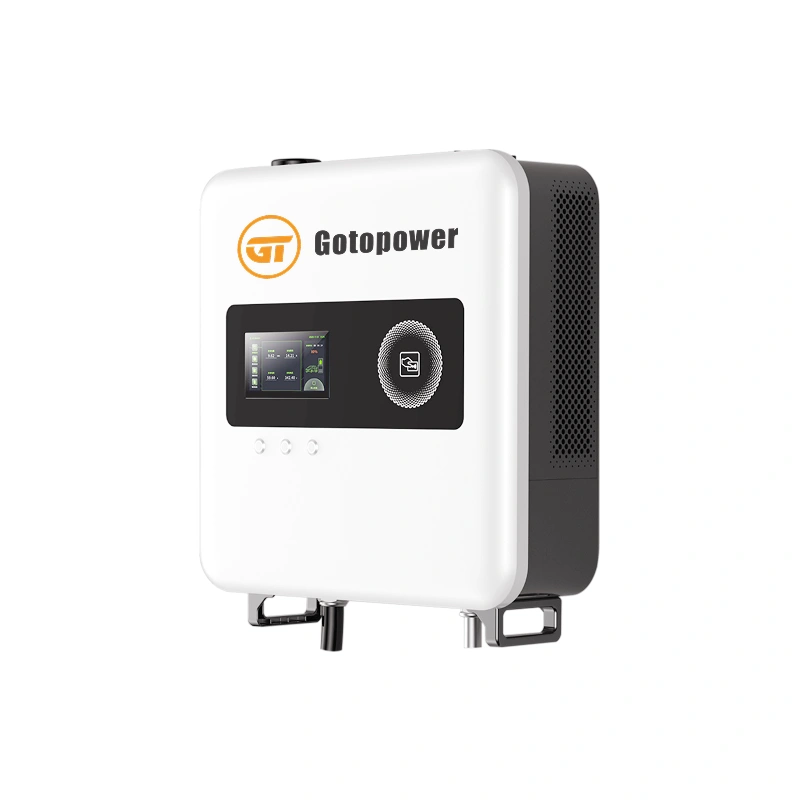

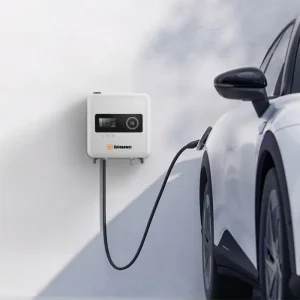

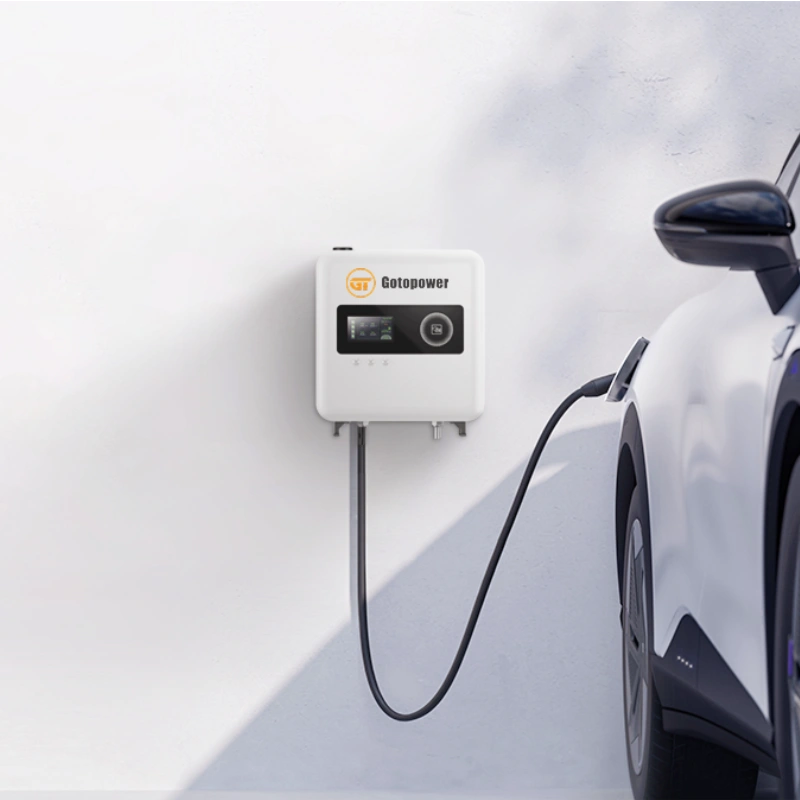

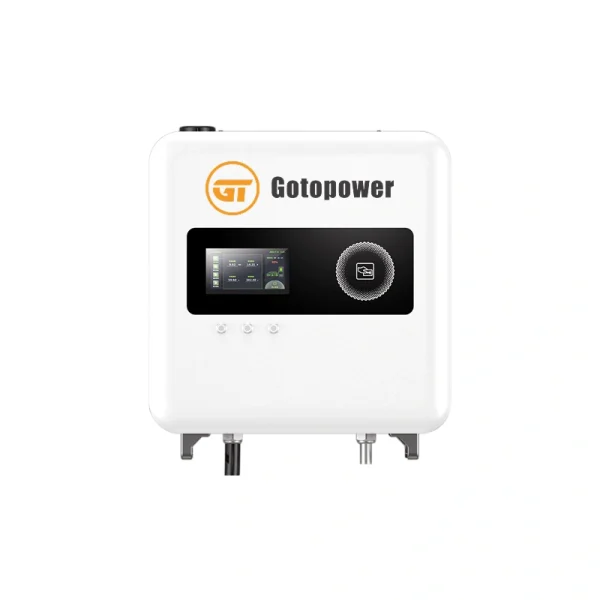

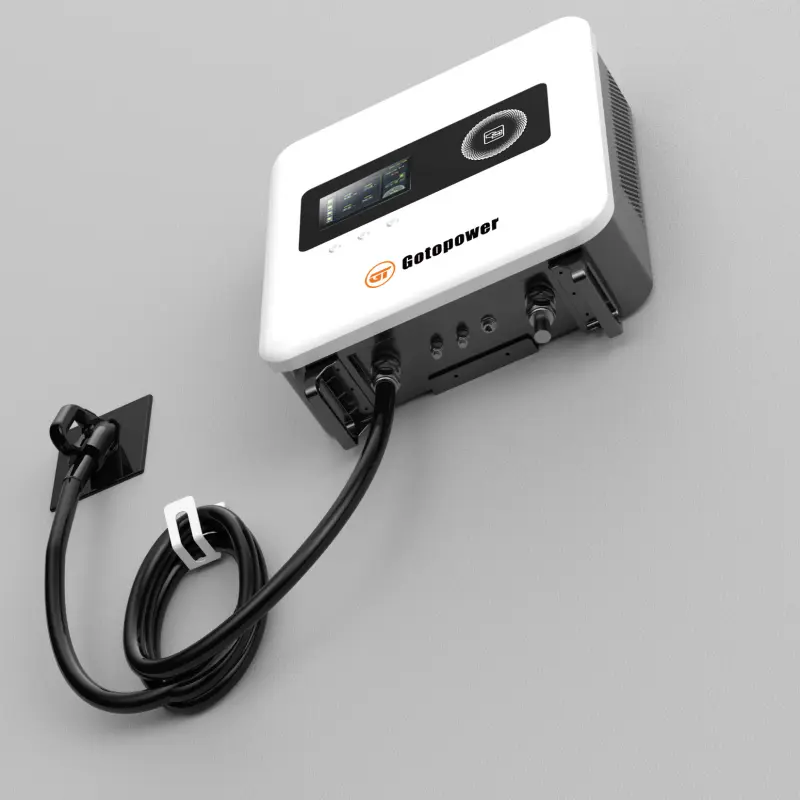

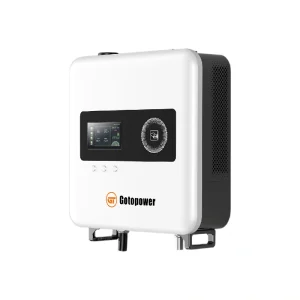

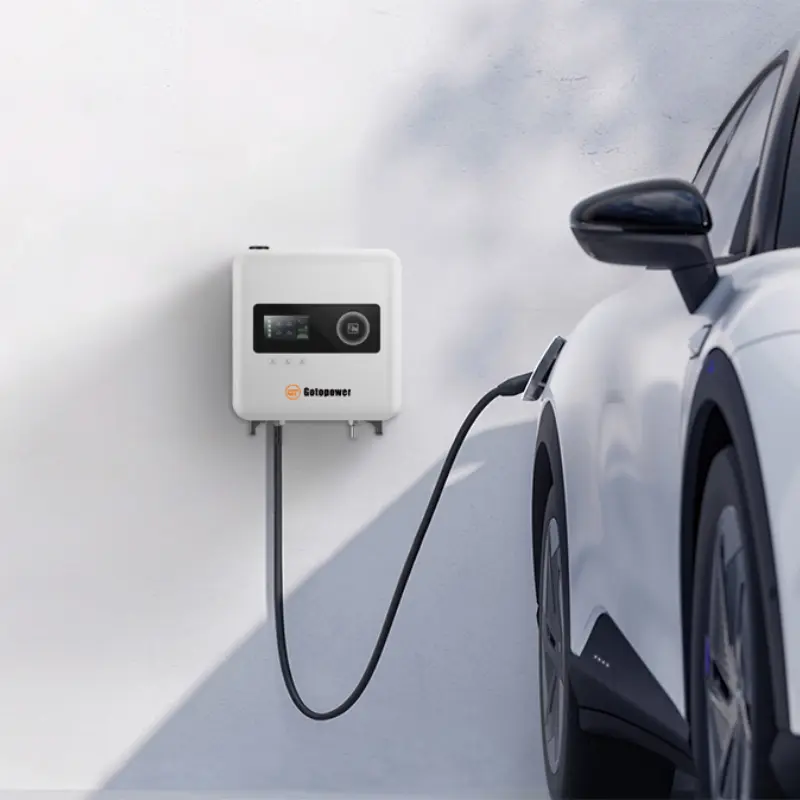

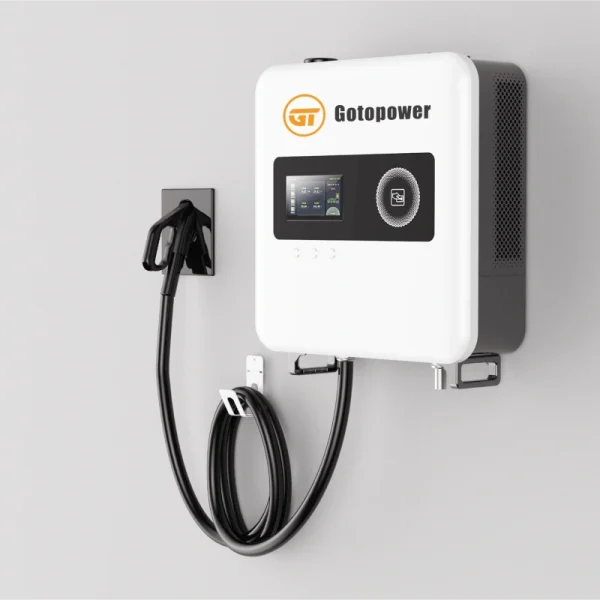

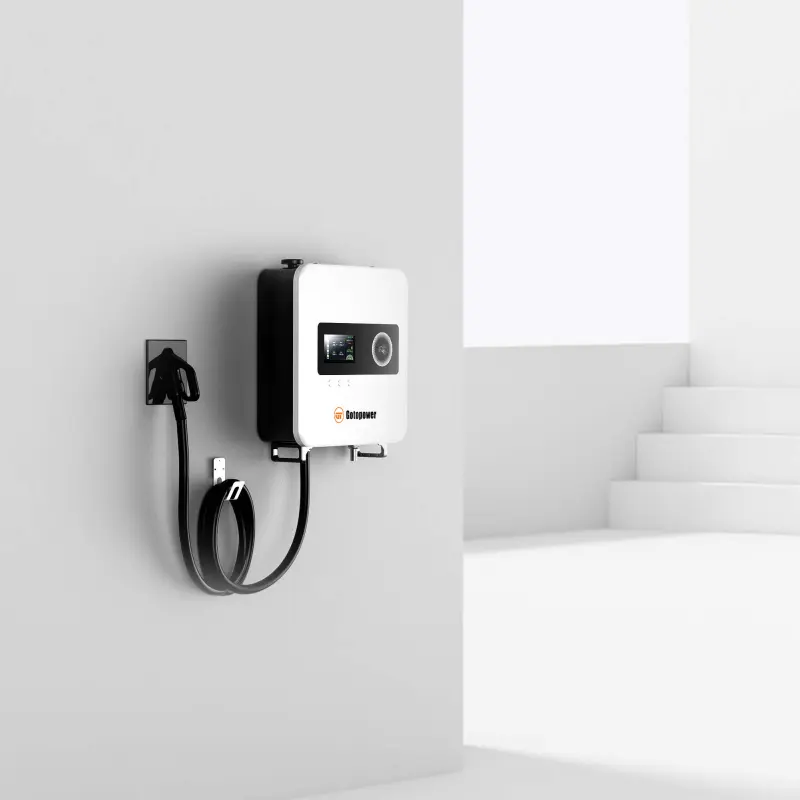

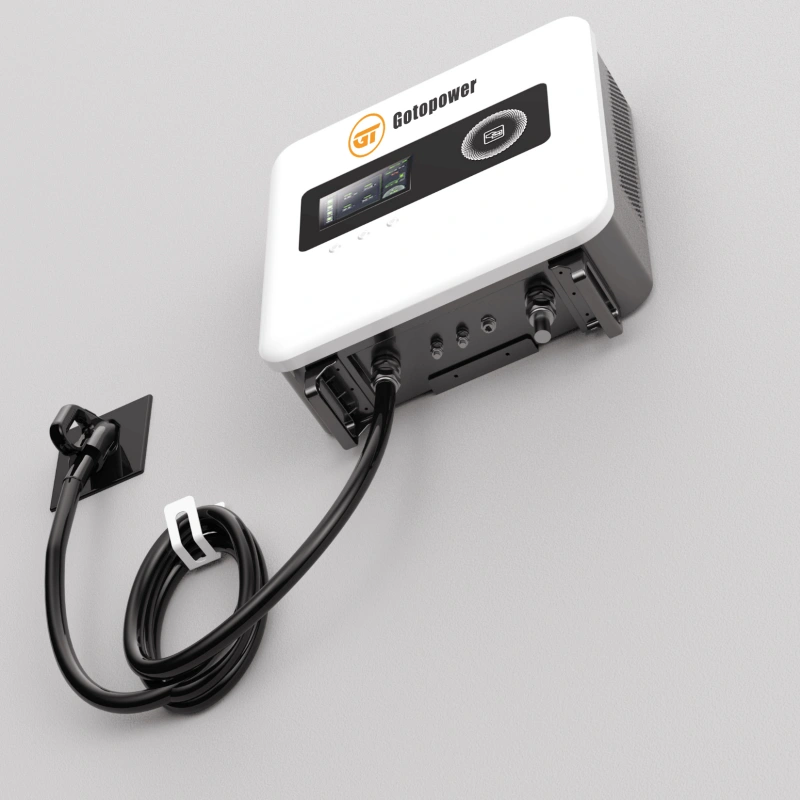

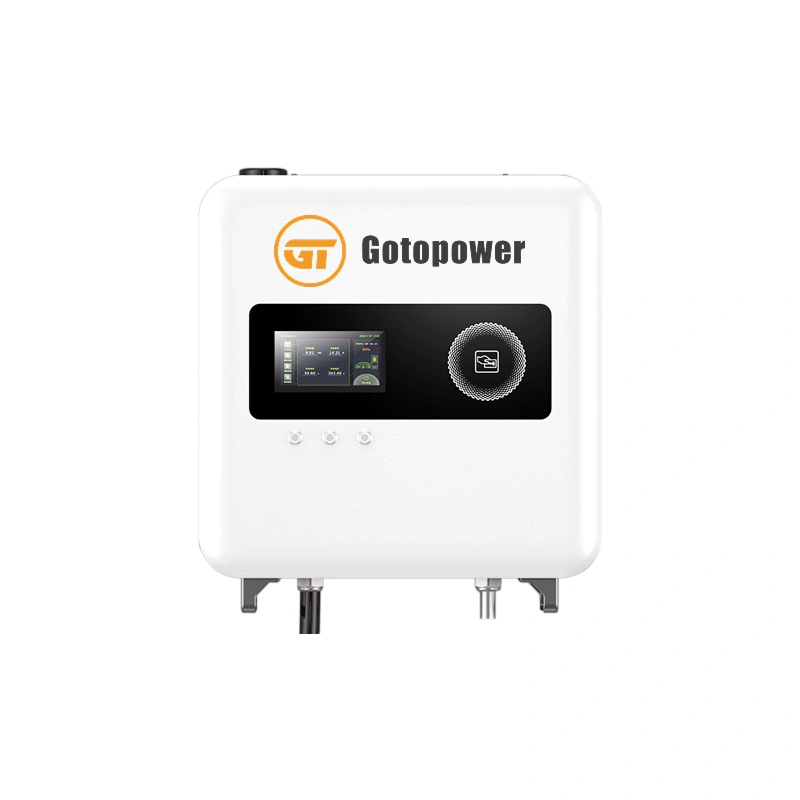

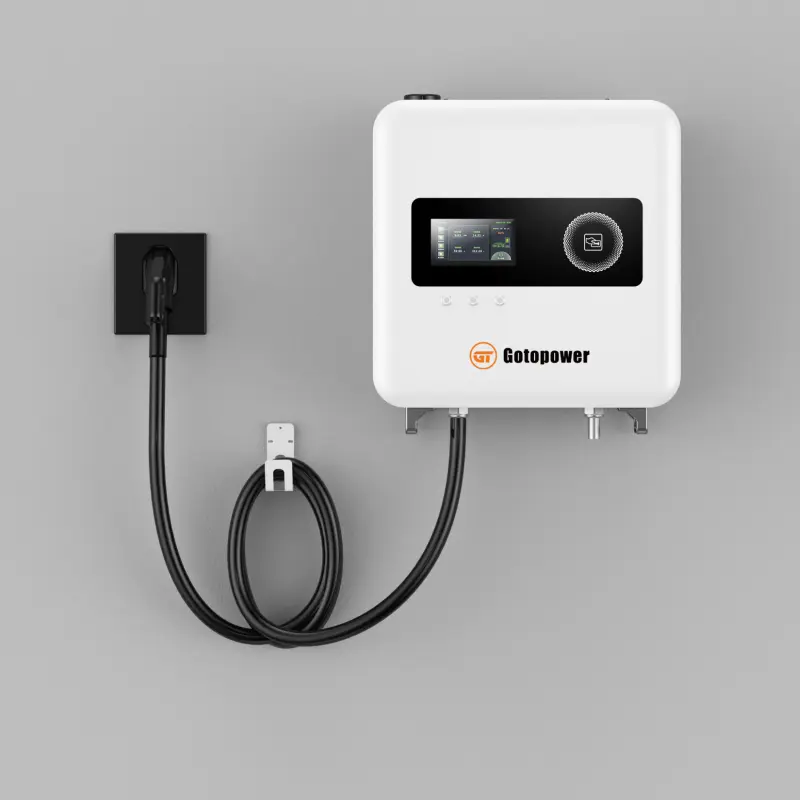

30kW Wall Box DC EV Charger Series EU Certified
Gotopower 30kW wall-mounted DC fast charger series delivers powerful, reliable charging for commercial and fleet applications. Designed for parking lots, retail hubs, and service stations. Features OCPP compliance, remote management, and advanced safety protocols. Explore scalable EV charging solutions today.
This DC EV Charger series integrates high intelligence, efficiency, flexibility, security, and elegant design into a future-proof charging solution.
-
Up to 96% energy efficiency
-
Smart charging with full-configuration support
-
Advanced load management
-
ISO15118 Plug & Charge compatibility
-
Multiple authentication methods: RFID card, mobile app, and automatic identification
| Model | EVDC1-30K-C-EU |
|---|---|
| Input | |
| Grid Connection | 3W+N+PE, 3W+PE |
| Voltage Range | 400Vac ± 15% |
| Rated Frequency | 50Hz |
| Power Factor | ≥0.99 (Rated Load) |
| Maximum Input Current | 60A |
| Output | |
| Rated Value | 1000V / 30A |
| Rated Power | 30kW |
| Voltage Range | 150Vdc – 1000Vdc |
| Current Range | 0 – 100A |
| System | |
| Maximum Efficiency | >96% |
| Charging Connector | CCS2 |
| Cable Length | 5.5m |
| RFID Reader | ISO 14443A / ISO 14443B |
| Authorization Mode | Plug & Charge / RFID card / App |
| Communication | Wi-Fi 2.4GHz/5GHz 802.11a/b/g/n, Bluetooth 5.2, 4G, FE 100Mbps, RS485, RS232 |
| Display | 10.1″ high resolution touch screen, IK10 |
| Protocol | OCPP 1.6i, OCPP2.0.X (optional) |
| Safety | |
| Ingress Protection Rating | IP65 |
| Impact Protection | IK10 |
| Protection | Over current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection, Relay Welding Detection, Residual current protection(optional) |
| Certification | CE,UKCA |
| Certification Standards | IEC 61851-1, IEC 61851-23 IEC 61000-1/3, IEC 61851-21 EN300 328, EN 301 489, EN 300 330, EN 62311 |
| Warranty | 2 years |
| Environment | |
| Installation | Wall-mounted / Pedestal-mounting / Movable cart (Optional) |
| Operating Temperature Range | -35°C – 50°C (>50°C derating) |
| Relative Humidity | 5% – 95% RH |
| Operating Altitude | <2000m |
| Cooling | Forced Air Cooling |
| Dimension (W×H×D) | 672×682×229mm |
| Weight | ≈62kg |
